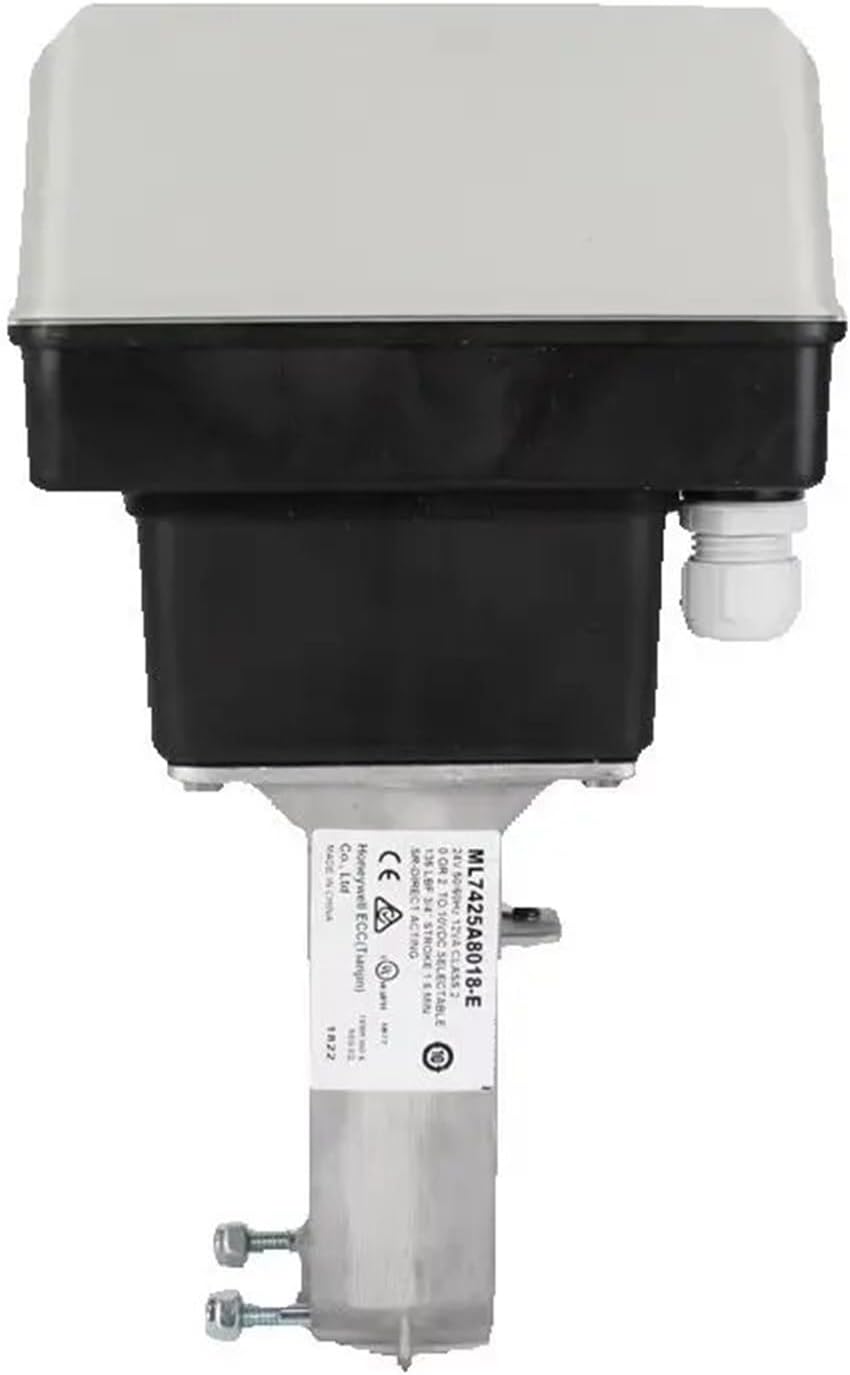

1Pcs ML7425A8018-E AC24V Electric Linear Valve Actuator for Modulating 2-Way Control Valves

Feedback ActuatorFEATURESEasy and quick installationNo separate linkage and adjustments requiredLow power consumption and maintenance-freeSelf-adaption functionForce-limiting end stopsManual operation knob0(2)~10 Vdc input and 2~10 Vdc position feedback signalDirect/ Reverse action adjustableStroke position on signal failure selectableCorrosion-resistant designSPECIFICATIONSTemperature Limits:Ambient operating limits -10~+50 at 5~95% r.h.Ambient storage limits -40...+70 °C at 5...95% r.h.Medium temperature Max. 150 °C (220 °C with High-Temperature kit)Signals:Signal input voltage y=0~10 Vdc or 2~10 VdcPosition feedback signal x=2~10Vdc(fully extended)Load 1 mA max.Material:Cover ABS-FRBase glass fiber reinforced plasticYoke aluminum diecastModel NumberML7425A8018-Esupply voltage24 Vac ±15%; 50/60 Hzpower consumption12 VAsignal input 0(2) VdcActuator stem retracted. Two-way valve:"open", three-way valve port A-AB:"closed"signal input 10 VdcActuator stem extended. Two-way valve:"closed", three-way valve port A-AB:"open"rated stroke20mmrun time at 50 Hz1 minclose-off force600 Nspring time12 sspring directionactuator stem extends at power failureweight2.4Kg==========NC or NO : Normally ClosedActuator Mode : With Manual And InstructionStructure : RegulatingMaterial : Aluminum die-castTemperature of Media : Normal TemperaturePower : electricPressure : Medium PressureModel Number : ML7425A8018-EPower : AC

• Feedback Actuator
• ML7425A8018-E AC24V Electric Linear Valve Actuator For Modulating 2-way Control Valves
